Diaphragm Valves in Kenya, Uganda, and Tanzania
| Specification | Details |
|---|---|
| Product Name | Diaphragm Valves (Weir / Straight-through) |
| Synonyms | Industrial Diaphragm Valve, Weir Diaphragm Valve |
| Valve Type | Diaphragm valve |
| Design Type | Weir / Straight-through |
| End Connection | Flanged |
| Body Materials | Cast iron, Carbon steel, Stainless steel |
| Lining Materials | Rubber, EPDM, PTFE |
| Sizes Available | ½″, ¾″, 1″, 1.5″, 2″, 3″, 4″, 6″, 8″, 10″, 12″ |
| Nominal Sizes (DN) | DN15, DN20, DN25, DN40, DN50, DN80, DN100, DN150, DN200, DN250, DN300 |
| Pressure Rating | PN10 / PN16 |
| Operation | Handwheel / Pneumatic / Electric |
| Sealing Type | Flexible diaphragm |
| Applications | Flow control and shut-off |
Description

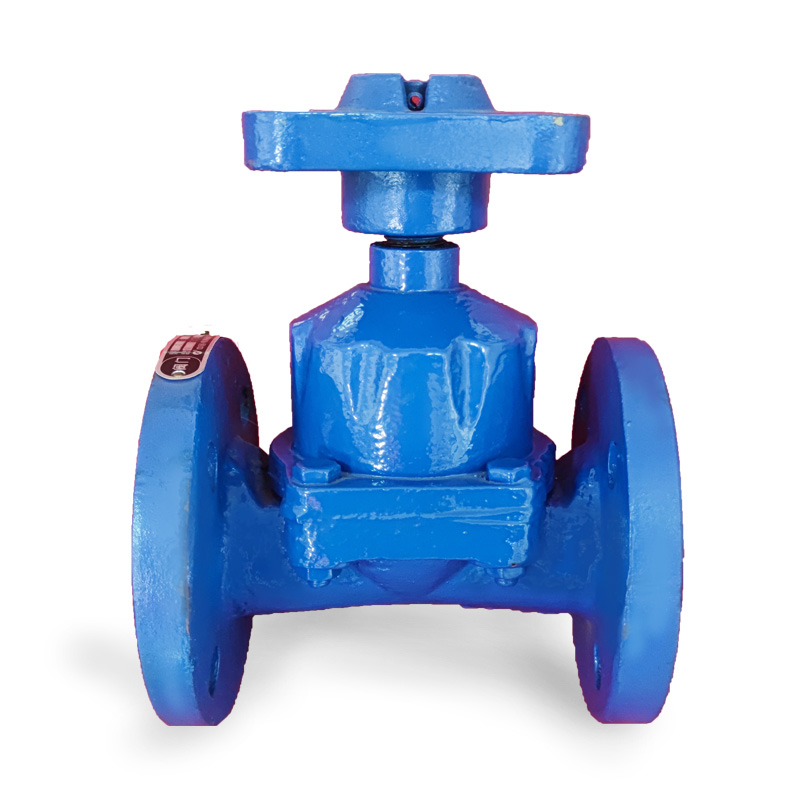

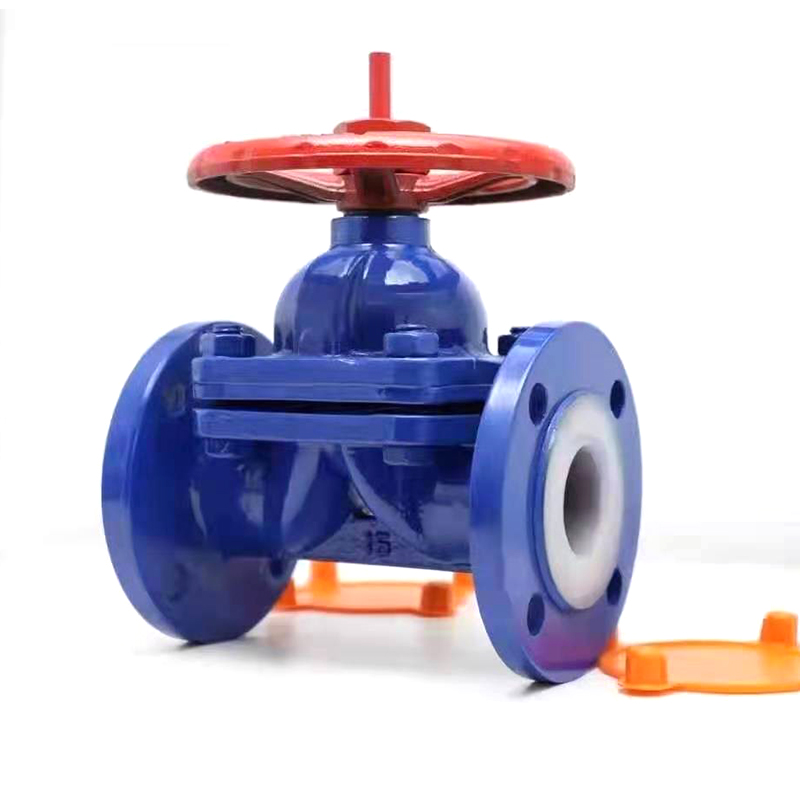

Diaphragm Valves (Weir / Straight-through) – Kenya, Uganda, Tanzania
Product Description
Diaphragm Valves regulate flow using a flexible diaphragm that presses against a weir or straight-through seat to control or stop media flow. This construction isolates the valve’s internal components from the process fluid, reducing leakage and contamination risks.
At Opal Industrial Solutions, we supply weir-type diaphragm valves for throttling applications and straight-through diaphragm valves for slurry and viscous media. These valves support water treatment systems, chemical plants, food processing lines, and pharmaceutical installations across East Africa.
Applications of diaphragm valves (weir / straight-through)
-
Chemical and industrial processing plants
-
Food and beverage production facilities
-
Pharmaceutical and hygienic installations
-
HVAC and utility services
Key Features & Benefits of diaphragm valves (weir / straight-through)
| Feature | Benefit |
|---|---|
| Flexible diaphragm sealing | Eliminates stem leakage |
| Media isolation design | Prevents contamination |
| Corrosion-resistant linings | Handles aggressive fluids |
| Simple internal structure | Easy maintenance |
| Hygienic flow path | Suitable for sanitary applications |
Technical Data Sheet (TDS)
(Values may vary by size and material)
| Parameter | Typical Value |
|---|---|
| Body Material | Cast iron / Carbon steel / Stainless steel |
| Size Range | ½″ – 12″ (DN15 – DN300) |
| Pressure Rating | PN10 / PN16 |
| Connection Type | Flanged |
| Operating Temperature | Depends on diaphragm material |
| Operation Method | Manual / Pneumatic / Electric |
| Sealing Options | Elastomer diaphragm |
| Installation | Horizontal or vertical |
Why Choose Opal Industrial Solutions
-
High-quality diaphragm valves meeting international standards
-
Weir and straight-through designs available
-
Full size range from DN15 to DN300
-
Reliable supply across Kenya, Uganda, and Tanzania
-
Competitive pricing for bulk and project orders
-
Trusted industrial supplier in East Africa
FAQs
Q1: What are these valves mainly used for?
A1: They provide accurate flow control and secure shut-off while isolating the process media.
Q2: When should the weir-type design be used?
A2: Engineers use the weir-type design for throttling clean or moderately viscous fluids.
Q3: Where is the straight-through design applied?
A3: The straight-through design suits slurry, viscous, and solid-laden media.
Q4: Do you supply bulk or project quantities?
A4: Yes, we support bulk orders and large industrial projects across East Africa.
Contact Us
For quotations or orders of Diaphragm Valves (Weir / Straight-through) in Kenya, Uganda, or Tanzania, contact Opal Industrial Solutions:
📍 Location: Industrial Area, Nairobi, Kenya
📞 Phone: 0119 665 733
📧 Email: opalindustrialsolutions@gmail.com
