Y-Strainers in Kenya, Uganda and Tanzania
| Specification | Details |
|---|---|
| Product Name | Y-Strainers (Cast Iron / Carbon Steel / Stainless Steel) |
| Synonyms | Pipeline Y-Strainer, Industrial Y-Strainer |
| Strainer Type | Y-type strainer |
| Materials Available | Cast iron, Carbon steel, Stainless steel |
| Sizes Available | ½″, ¾″, 1″, 1.5″, 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″ |
| Nominal Sizes (DN) | DN15 – DN600 |
| Screen Material | Stainless steel |
| End Connections | Threaded / Flanged |
| Applications | Debris filtration and equipment protection |
Description

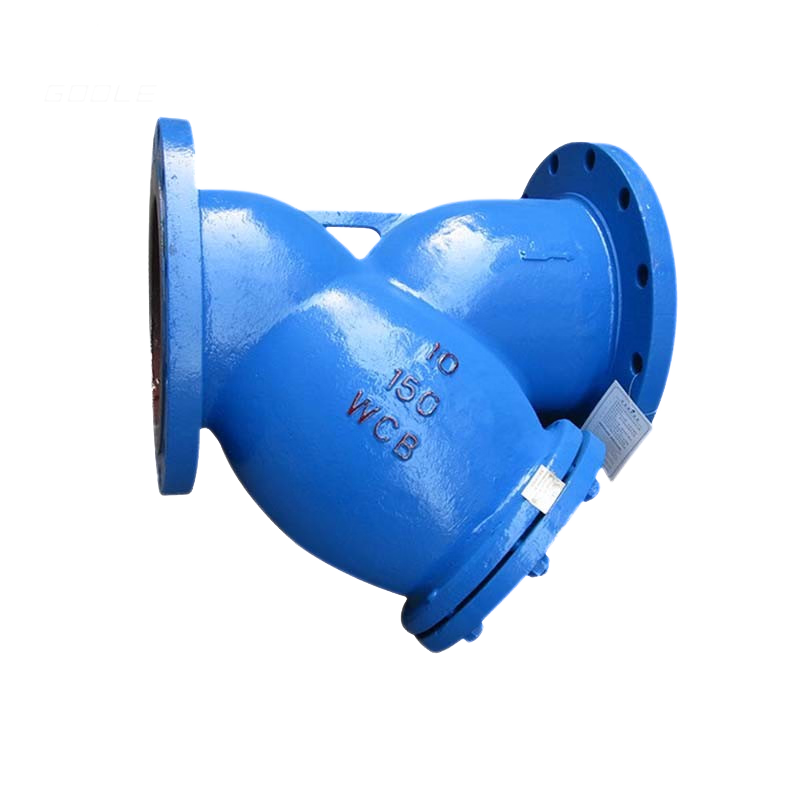

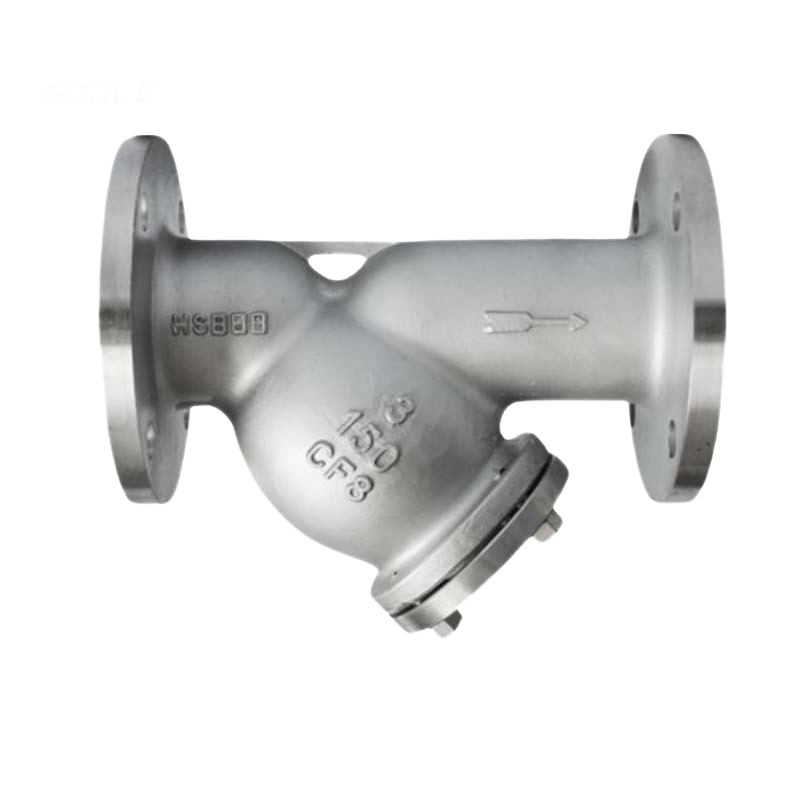

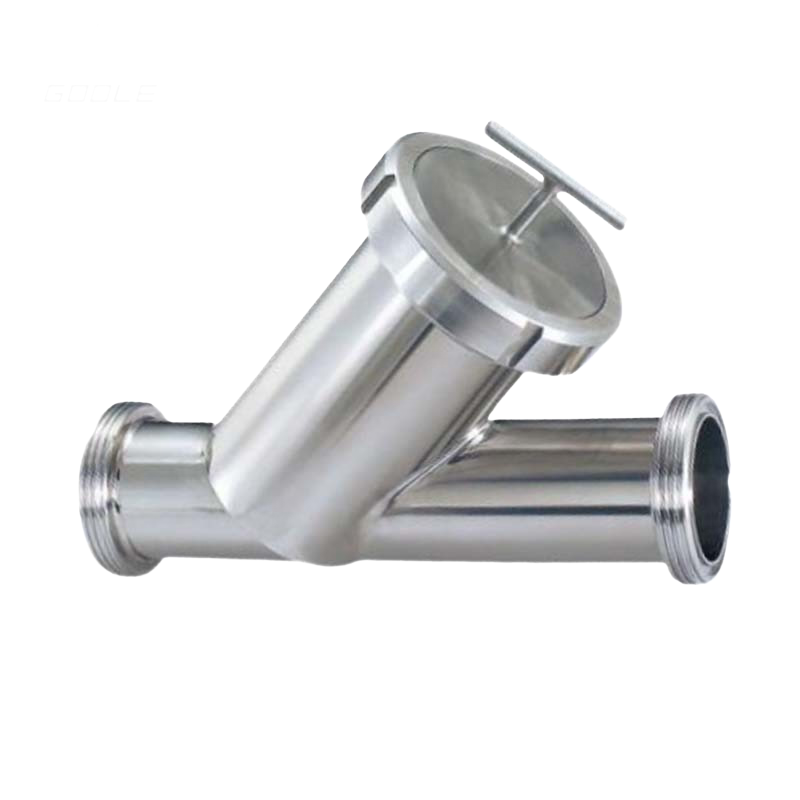

Y-Strainers (Cast Iron / Carbon Steel / Stainless Steel) – Kenya, Uganda, Tanzania
Product Description
Y-Strainers use an internal perforated or mesh screen to trap unwanted particles while allowing fluid to flow through the pipeline. Their angled “Y” design reduces pressure loss and allows easy access for screen cleaning and maintenance, even in tight installation spaces where straight-line strainers may not be practical.
At Opal Industrial Solutions, we supply Y-strainers widely used in water supply lines, steam systems, oil and gas pipelines, and chemical processing plants across East Africa. Proper strainer selection improves filtration efficiency, minimizes pressure drop, reduces unplanned downtime, and extends the operating life of downstream valves, pumps, meters, and sensitive equipment in continuous service applications. These strainers support stable system performance and help lower long-term maintenance costs.
Applications of y-strainers (cast iron / carbon steel / stainless steel)
-
Municipal and industrial water distribution systems
-
Oil and gas processing lines with particulate fluids
-
Chemical and industrial plants using sensitive flow equipment
-
HVAC and utility systems requiring reliable flow protection
Key Features & Benefits of y-strainers (cast iron / carbon steel / stainless steel)
| Feature | Benefit |
|---|---|
| Efficient debris filtration | Protects downstream equipment from damage and wear |
| Y-type angled design | Minimizes pressure drop and maintains smooth flow |
| Multiple material options | Suits different media, pressures, and environments |
| Removable screen | Enables fast cleaning and reduced maintenance time |
| Rugged construction | Ensures long-term industrial performance and reliability |
Technical Data Sheet (TDS)
(Values may vary by size and material)
| Parameter | Typical Value |
|---|---|
| Strainer Type | Y-type |
| Size Range | ½″ – 24″ (DN15 – DN600) |
| Pressure Rating | PN16 / PN25 |
| Screen Type | Perforated / Mesh |
| Installation | Horizontal or vertical |
| Medium | Water, steam, oil, compatible fluids |
FAQs
Q1: What is the main purpose of these strainers?
A1: They remove debris from pipelines to protect valves, pumps, meters, and equipment.
Q2: Where should engineers install them?
A2: Engineers install them upstream of sensitive equipment and control valves.
Q3: Can operators clean the screen easily?
A3: Yes, operators can remove and clean the screen during routine maintenance.
Q4: Do they suit high-temperature applications?
A4: Yes, carbon steel and stainless steel models handle high-temperature services.
