Safety / Relief Valves in Kenya, Uganda, Tanzania
| Specification | Details |
|---|---|
| Product Name | Safety / Relief Valves (Spring / Pilot Operated) |
| Synonyms | Pressure Safety Valves, Relief Valves |
| Valve Type | Safety / Relief valve |
| Types Available | Spring-loaded, Pilot-operated |
| Sizes Available | ½″, ¾″, 1″, 1.5″, 2″, 2.5″, 3″, 4″, 5″, 6″, 8″ |
| Nominal Sizes (DN) | DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 |
| Body Material | Carbon steel / Stainless steel / Bronze |
| End Connections | Threaded / Flanged |
| Applications | Over-pressure protection systems |
Description
Safety / Relief Valves (Spring / Pilot Operated) – Kenya, Uganda, Tanzania
Product Description

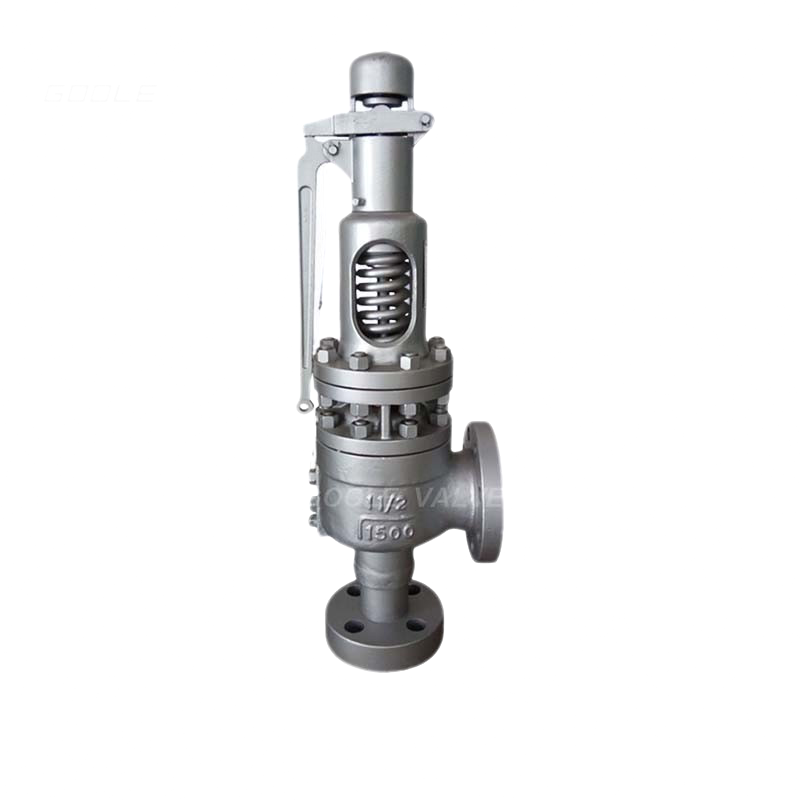

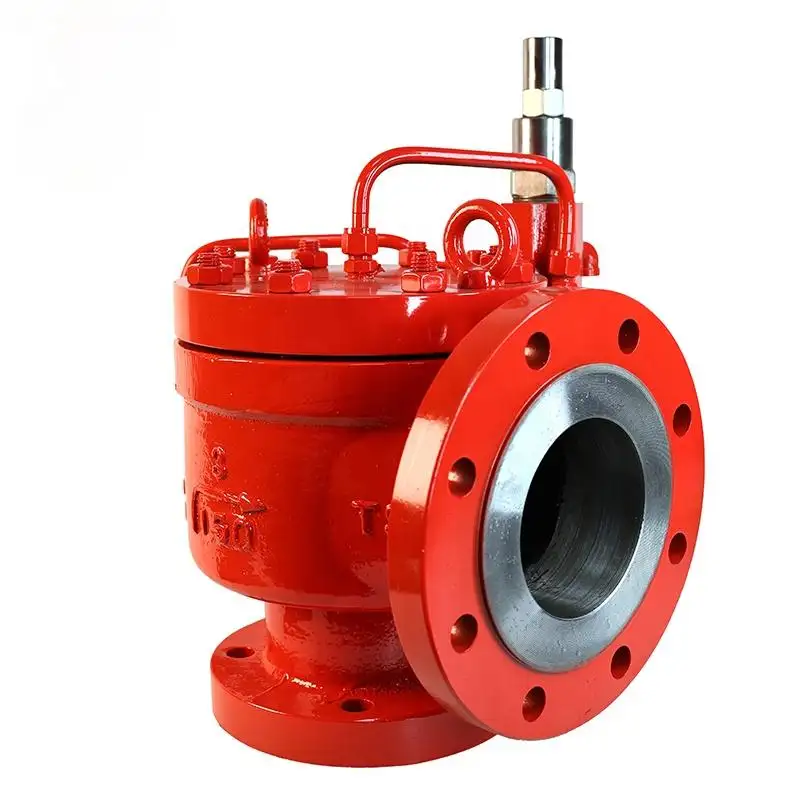

Safety / Relief Valves open automatically when system pressure exceeds a preset limit and close once pressure returns to a safe level. Spring-loaded designs provide simple, dependable protection with minimal maintenance, while pilot-operated designs deliver higher discharge capacity and improved pressure stability in demanding systems.
At Opal Industrial Solutions, we supply valves suitable for boilers, compressors, pressure vessels, and pipelines used across East Africa. Correct sizing and proper installation enhance reliability, extend service life, and support safe system operation under varying load conditions.
Applications of Safety / Relief Valves (Spring / Pilot Operated)
-
Compressors and pressure vessels
-
Oil and gas processing facilities
-
Chemical and industrial plants
-
Power generation and utility networks
Key Features & Benefits of Safety / Relief Valves (Spring / Pilot Operated)
| Feature | Benefit |
|---|---|
| Automatic pressure relief | Prevents equipment damage and system failure |
| Spring & pilot options | Supports different pressure and flow requirements |
| Accurate set pressure | Maintains consistent system protection |
| Durable materials | Withstands high temperature and pressure conditions |
| Compliance ready | Supports industry safety standards |
Technical Data Sheet (TDS)
(Values may vary by model and size)
| Parameter | Typical Value |
|---|---|
| Valve Type | Safety / Relief valve |
| Size Range | ½″ – 8″ (DN15 – DN200) |
| Pressure Rating | PN16 / PN25 / PN40 |
| Set Pressure | Factory or field adjustable |
| Operation | Automatic |
| Medium | Steam, gas, liquids |
FAQs
Q1: What is the main purpose of these valves?
A1: They release excess pressure to protect systems and equipment.
Q2: When should engineers use pilot-operated designs?
A2: Engineers choose pilot-operated designs for high-pressure or high-flow applications.
Q3: Do they reset automatically after relieving pressure?
A3: Yes, they close automatically once pressure returns to safe levels.
Q4: Are they mandatory in pressurized systems?
A4: Yes, safety standards require them in boilers, vessels, and pressure systems.
