Ball Valves (Floating / Trunnion) – Kenya, Uganda, Tanzania
| Specification | Details |
|---|---|
| Product Name | Ball Valves (Floating / Trunnion) |
| Synonyms | Industrial Ball Valve, Floating Ball Valve, Trunnion Ball Valve |
| Valve Type | Ball valve |
| Ball Design | Floating / Trunnion mounted |
| End Connections | Flanged, Threaded, Butt-weld |
| Sizes Available | ½″, ¾″, 1″, 1.5″, 2″, 3″, 4″, 6″, 8″, 10″, 12″ |
| Nominal Sizes (DN) | DN15, DN20, DN25, DN40, DN50, DN80, DN100, DN150, DN200, DN250, DN300 |
| Operation | Lever operated / Gear operated |
| Body Construction | Two-piece / Three-piece |
| Sealing Type | Soft seat / Metal seat (optional) |
| Applications | Flow control and shut-off in pipelines |
Description
Ball Valves (Floating / Trunnion) – Kenya, Uganda, Tanzania
Product Description
Ball Valves control flow using a rotating ball with a central bore that aligns or blocks the pipeline. A quarter-turn operation allows fast shut-off, making these valves ideal for systems requiring frequent operation.

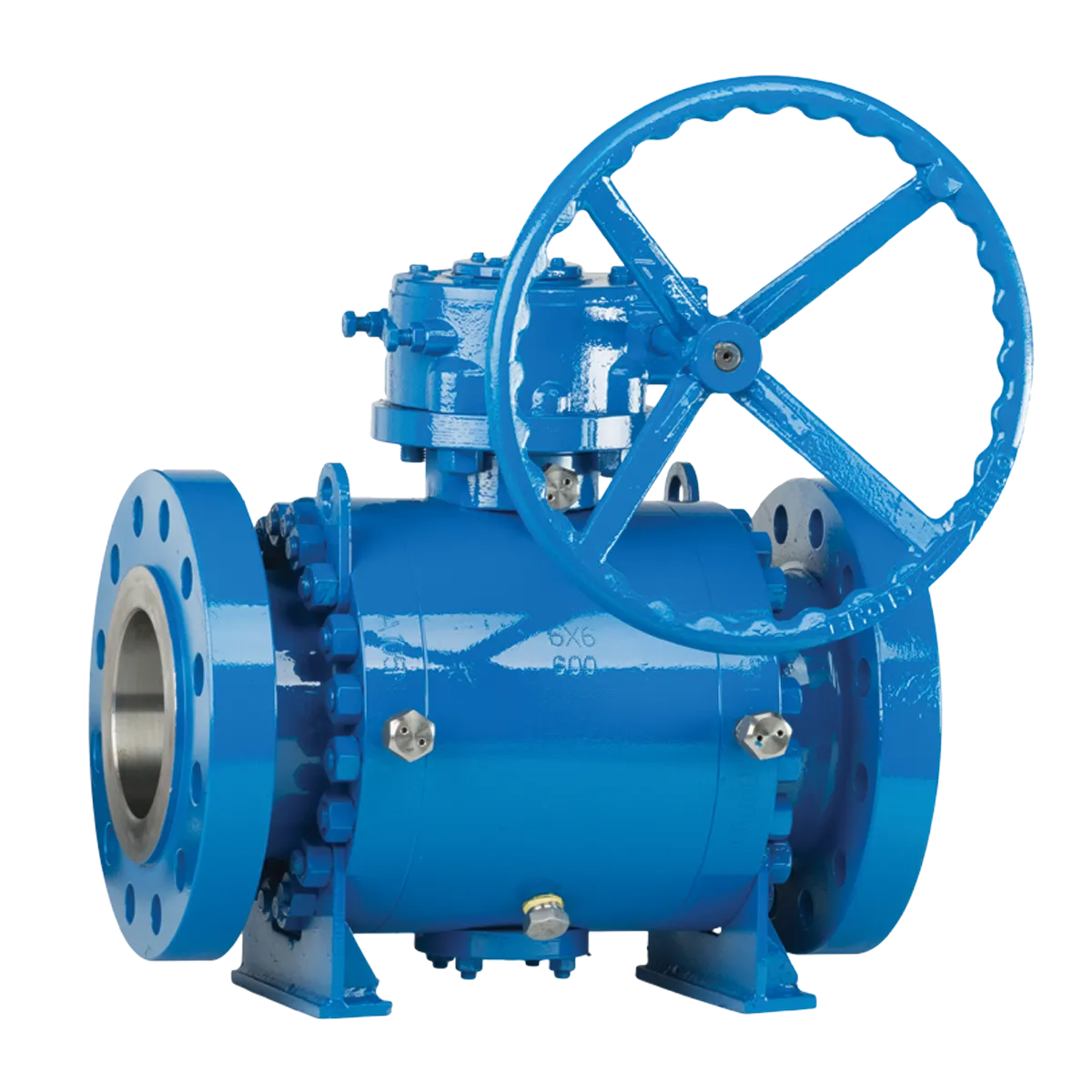

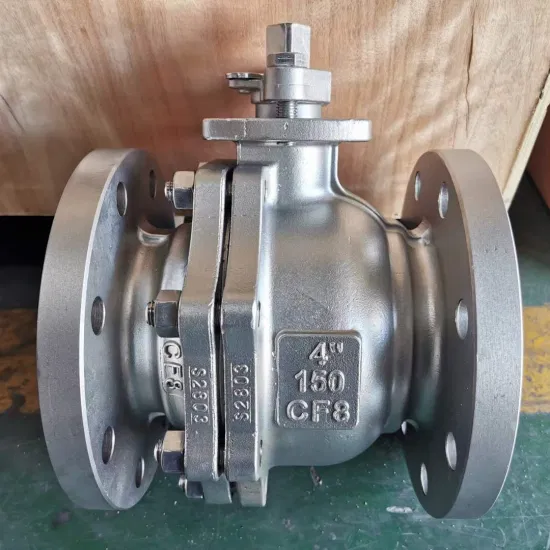

At Opal Industrial Solutions, we supply floating ball valves for small to medium sizes and trunnion-mounted ball valves for larger diameters and high-pressure applications. These valves serve oil and gas systems, water treatment plants, industrial process lines, and utility networks across East Africa.
Applications of Ball Valves (Floating / Trunnion)
-
Oil and gas pipelines
-
Water treatment and distribution systems
-
Industrial process plants
-
Chemical and petrochemical facilities
-
Power generation systems
-
HVAC and utility services
Key Features & Benefits of Ball Valves (Floating / Trunnion)
| Feature | Benefit |
|---|---|
| Quarter-turn operation | Fast and easy shut-off |
| Floating & trunnion designs | Suitable for low and high-pressure systems |
| Multiple end connections | Easy integration into different pipelines |
| Tight sealing performance | Minimizes leakage |
| Durable construction | Long service life in industrial environments |
Technical Data Sheet (TDS)
(Values may vary by size, type, and material)
| Parameter | Typical Value |
|---|---|
| Valve Type | Floating / Trunnion ball valve |
| Size Range | ½″ – 12″ (DN15 – DN300) |
| End Connections | Flanged / Threaded / Butt-weld |
| Operation | Lever or gear |
| Pressure Rating | Class 150 / 300 (model dependent) |
| Operating Temperature | Suitable for industrial applications |
| Sealing Options | Soft seat / Metal seat |
| Installation | Horizontal or vertical |
Why Choose Opal Industrial Solutions
-
High-quality ball valves meeting international standards
-
Floating and trunnion designs available
-
Wide size range from DN15 to DN300
-
Reliable supply across Kenya, Uganda, and Tanzania
-
Competitive pricing for bulk and project orders
-
Trusted industrial supplier in East Africa
FAQs
Q1: What do these valves mainly do?
A1: They provide fast and reliable shut-off through quarter-turn operation.
Q2: Do they regulate flow?
A2: They allow limited flow control, but operators mainly use them for on/off service.
Q3: When should the trunnion-mounted design be used?
A3: Engineers use this design for larger sizes and high-pressure applications to reduce operating torque.
Q4: What end connections are available?
A4: Flanged, threaded, and butt-weld end connections are available.
